2880 - Ford / Mazda Camshaft Alignment Kit - 1.4L, 1.5L, 1.6L & 2.0L

• For locking and positioning camshafts, crankshafts & injection pump sprockets when replacing timing belts or chains
• Includes setting gauge and 3 different locking pins
• Services Mazda and Ford including all HWDA, HWDB, & HXDA engines

Click HERE for instructions

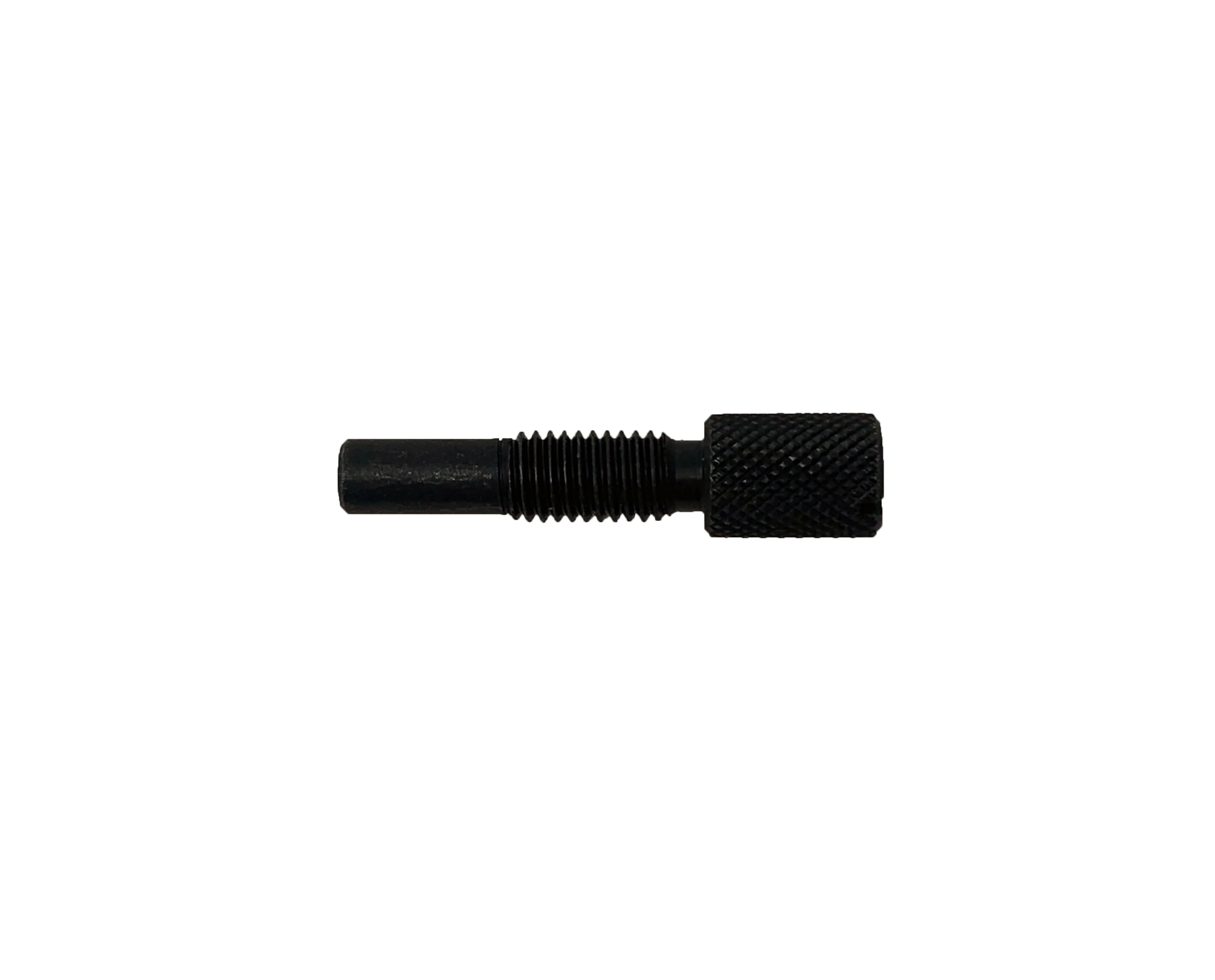

Pin Specs

• Designation	Part #	Description	Ford Factory #
  A	2880X01	Alignment bar	303-367
  B	2880X02	Lock Pin Long	303-620
  C	2880X03	Lock Pin Thick	303-748
  D	2880X04	Lock Pin Thin	303-507

Applications

2880X01 - Alignment Bar (#303-367)

Make	Model	Engine	Years
Ford	Fiesta	1.25L Duratec	2005-2013
Ford	Fiesta	1.4L Duratec	2005-2013
Ford	Fiesta	1.6L Duratec	2005-2013
Ford	Focus	1.4L Duratec	2008-2013
Ford	Focus	1.6L Duratec	2008-2013
Ford	Focus	1.6L Duratec Flex Fuel	2010-2013
Ford	C-Max	1.6L Duratec	2011
Ford	C-Max	1.6L Duratec Flex Fuel	2011

2880X02 - Lock Pin Long (#303-620)

Make	Model	Engine	Years
Ford	Contour	2.0L DOHC Zetec I4	1995-2000
Ford	Escort	2.0L DOHC Zetec I4	1997-2002
Ford	Focus	2.0L DOHC Zetec I4	2000-2004
Ford	Probe	2.0L DOHC Zetec I4	1994-1997
Ford	Ranger	2.0L DOHC Zetec I4	1998-2003
Mercury	Cougar	2.0L DOHC Zetec I4	1999-2002
Mercury	Mystique	2.0L DOHC Zetec I4	1995-2000
Mercury	Sable	2.0L DOHC Zetec I4	1996-1999

2880X03 - Lock Pin Thick (#303-748)

Make	Model	Engine	Years
Ford	Fiesta	1.25L Duratec	2005-2008
Ford	Fiesta	1.4L Duratec	2005-2013
Ford	Fiesta	1.6L Duratec	2005-2013
Ford	Fiesta	1.6L EcoBoost	2013
Ford	Focus	1.4L Duratec	2005, 2008-2013
Ford	Focus	1.6L Duratec	2008-2013
Ford	Focus	1.6L EcoBoost	2010-2013
Ford	Focus	2.0L Duratec	2010-2013
Ford	Focus	2.0L EcoBoost	2010-2013
Ford	C-Max	1.6L Duratec	2011
Ford	C-Max	1.6L EcoBoost	2011
Ford	Escape	1.6L EcoBoost	2013
Ford	Fusion	1.6L EcoBoost	2013
Ford	Multiple Models	1.5L EcoBoost	2014-present

2880X04 - Lock Pin Thin (#303-507)

Make	Model	Engine	Years
Ford	Escape	2.3L DOHC 4V I4	2005-2012
Ford	Fusion	2.3L DOHC 4V I4	2006-2012
Ford	Mazda6	2.3L DOHC 4V I4	2003-2008
Ford	Ranger	2.3L DOHC 4V I4	2004-2011
Mercury	Mariner	2.3L DOHC 4V I4	2005-2011
Mercury	Milan	2.3L DOHC 4V I4	2006-2011
Mazda	B-Series Pickup	2.3L DOHC 4V I4	2004-2009
Mazda	MPV	2.3L DOHC 4V I4	2004-2006
Mazda	Tribute	2.3L DOHC 4V I4	2001-2011
Ford	Five Hundred	2.3L DOHC 4V I4	2005-2007
Mercury	Montego	2.3L DOHC 4V I4	2005-2007
Ford	Freestyle	2.3L DOHC 4V I4	2005-2007
Mercury	Marauder	4.6L DOHC V8	2003-2004
