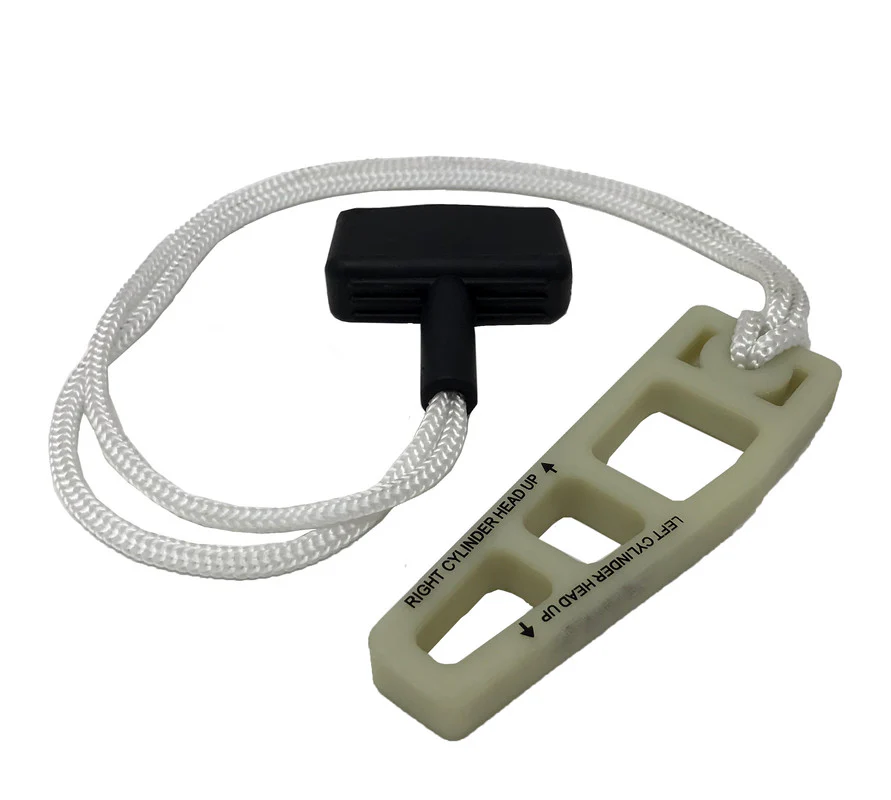

5040 - Timing Chain Wedge - Chrysler/Dodge/Jeep - 4.7L V8

• Properly setup and service engine timing
• Tool locks the timing chains against the hydraulic tensioners to prevent tensioner ratcheting and piston extension during service procedures
• Applications: 4.7L (PowerTech) V8

Applications

Make	Model	Year
Chrysler	Aspen	2007-2009
Dodge	Dakota	2000-2009
Dodge	Durango	2000-2009
Dodge	RAM 1500	2002-2008
Jeep	Grand Cherokee	1999–2009
Jeep	Commander	2006-2009
Mitsubishi	Raider	2006-2007

Instructions

1. Set engine to TDC No.1 compression. The cam sprocket "V8" mark should be at the 12:00 o'clock position.
2. Mark one link on the timing chain to the cam sprocket - this will help during reassembly.
3. Position No. 5040 between the timing chains. Tap the tool to securely wedge the timing chain against the tensioner arm and guide.
4. Carefully remove the cam sprocket bolt. The cylinder head and/or valve train are ready for service
