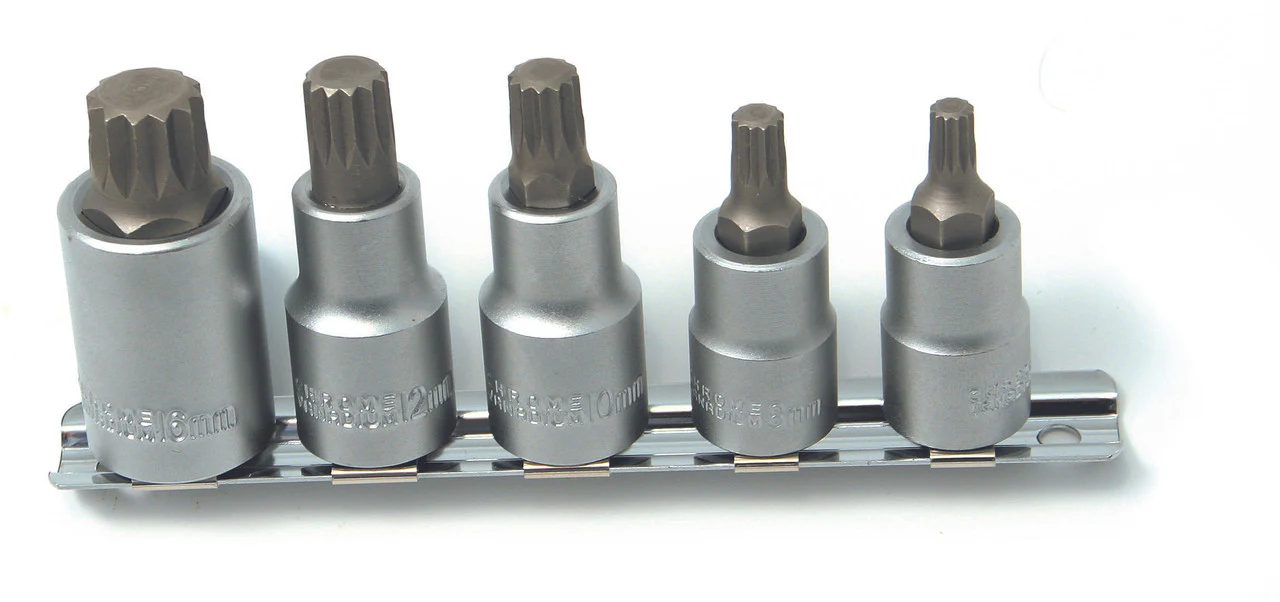

8510 - 5 Pc. Set 12-Point Triple Square 6mm, 8mm, 10mm, 12mm, 16mm "XZN" Wrenches - Stubby

• Stubby 12-Point Triple Square "XZN"
• Used for tight access applications
• Application Guide:
  • #8511 - Various applications on European vehicles.
  • #8512 - Remove and install head and accessory bolts on Mercedes Benz, and remove and install axle shaft bolts on VW and Audi's
  • #8513 - Used for cylinder head bolts and drive shaft bolts on Mercedes Benz, and remove and install cylinder head bolts on VW and Audi's
  • #8514 - Remove and install cylinder head bolts on Mercedes Benz, rear toe adjustment on 1999 and newer Audi A6, and axle shaft bolts on new VW's
  • #8515 - Used for Audi TT clutch and belly pan, various Audi/ VW transmission drain plugs, 2003 and later VW Touareg/ Porsche Cayenne brake caliper bolts, Detroit Diesel's flywheel bolts and front crank pullers on 900 and 4000 engine plus head bolts on 900 engine

Components

CTA #	SIZE	DRIVE	OAL
8511	6mm	3/8"	2"

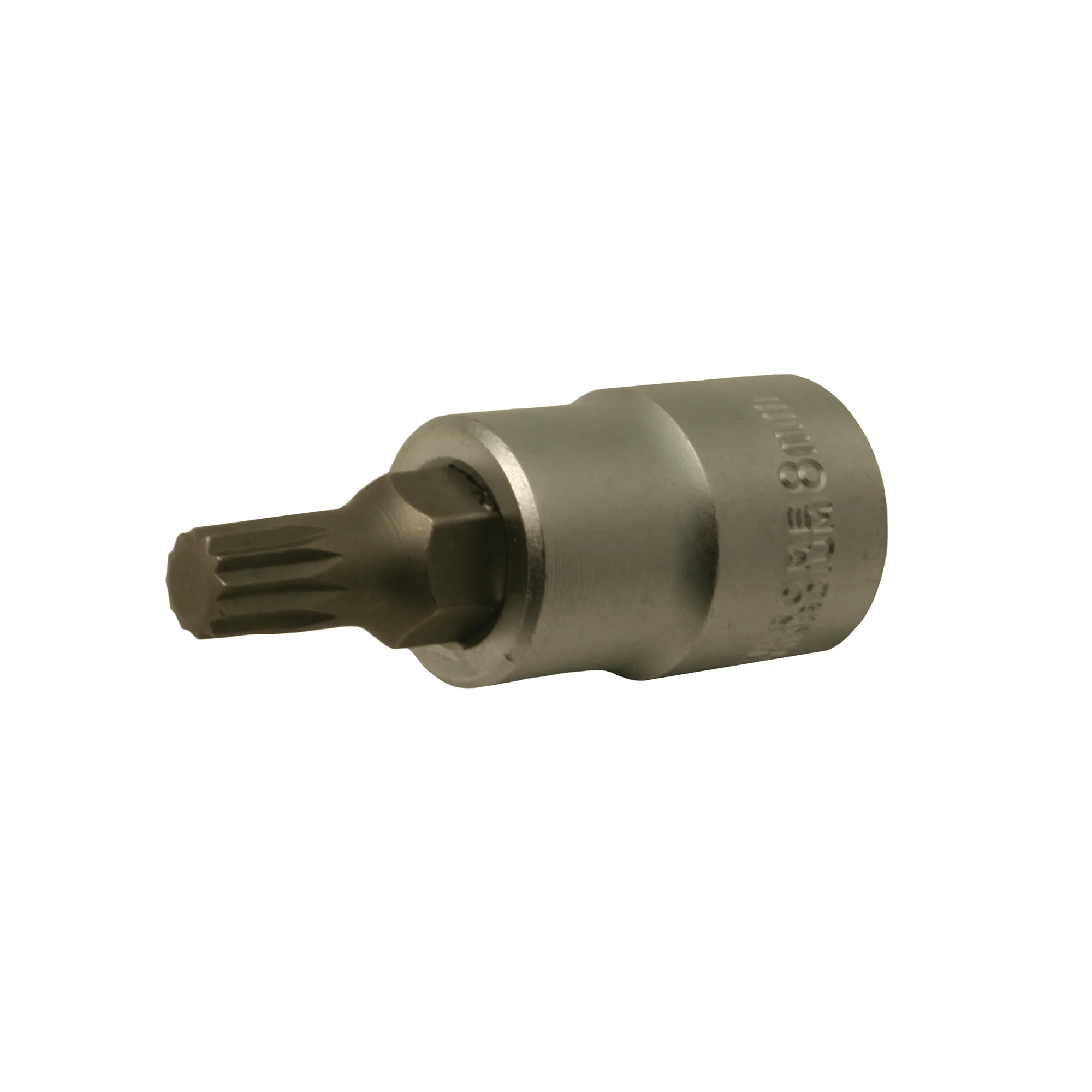

8512	8mm	3/8"	2"
8513	10mm	1/2"	2-1/4"
8514	12mm	1/2"	2-1/4"
8515	16mm	1/2"	2-1/4"

Applications

MAKE	MODEL	YEAR
Audi	100	1989-1994
Audi	100 Quattro	1989-1994
Audi	100 Series	1969-1977
Audi	200	1989-1991
Audi	200 Quattro	1989-1991
Audi	4000	1980-1987
Audi	4000 Quattro	1984-1987
Audi	5000	1978-1988
Audi	5000 Quattro	1986-1988
Audi	80	1988-1992
Audi	80 Quattro	1988-1999
Audi	90	1988-1995
Audi	90 Quattro	1988-1995
Audi	A3	2006-2013, 2015
Audi	A3 Quattro	2006-2013, 2015
Audi	A4	1996-2015
Audi	A4 Quattro	1996-2015
Audi	A5	2010-2015
Audi	A5 Quattro	2008-2015
Audi	A6	1995-2015
Audi	A6 Quattro	1995-2015
Audi	A7 Quattro	2012-2015
Audi	A8	1997-1999
Audi	A8 Quattro	1997-2015
Audi	Allroad Quattro	2001-2005
Audi	Cabriolet	1994-1998
Audi	Coupe	1981-1987
Audi	Coupe Quattro	1990-1991
Audi	Fox	1973-1979
Audi	Q3	2015
Audi	Q3 Quattro	2015
Audi	Q5	2009-2015
Audi	Q7	2007-2015
Audi	Quattro	1983-1985
Audi	R8	2008-2015
Audi	RS4	2007-2008
Audi	RS5	2013-2015
Audi	RS6	2003-2004
Audi	RS7	2014-2015
Audi	S3	2015
Audi	S4	1992-1994, 2000-2015
Audi	S5	2008-2015
Audi	S6	1995-2015
Audi	S7	2013-2015
Audi	S8	2001-2003, 2007-2009, 2013-2015
Audi	SQ5	2014-2015
Audi	Super 90	1969-1972
Audi	TT	2000-2009
Audi	TT Quattro	2000-2015
Audi	V8 Quattro	1990-1994
Audi	allroad	2013-2015
Volkswagen	Beetle	1950-2015
Volkswagen	411	1971-1973
Volkswagen	CC	2009-2015
Volkswagen	Cabrio	1995-2002
Volkswagen	Cabriolet	1985-1993
Volkswagen	Campmobile	1968-1974
Volkswagen	Corrado	1990-1994
Volkswagen	Dasher	1974-1981
Volkswagen	Eos	2007-2015
Volkswagen	EuroVan	1993-2003
Volkswagen	Fastback	1966-1973
Volkswagen	Fox	1987-1983
Volkswagen	GTI	2006-2015
Volkswagen	Golf	1985-2015
Volkswagen	Jetta	1980-2015
Volkswagen	Karmann Ghia	1955-1974
Volkswagen	Passat	1990-2015
Volkswagen	Phaeton	2004-2006
Volkswagen	Quantum	1982-1988
Volkswagen	R32	2008
Volkswagen	Rabbit	1975-1984, 2006-2009
Volkswagen	Rabbit Convertible	1980-1984
Volkswagen	Rabbit Pickup	1980-1983
Volkswagen	Routan	2009-2014
Volkswagen	Scirocco	1975-1988
Volkswagen	Squareback	1966-1973
Volkswagen	Standard	1945-1949
Volkswagen	Super Beetle	1971-1980
Volkswagen	Thing	1973-1974
Volkswagen	Tiguan	2009-2015
Volkswagen	Touareg	2004-2015
Volkswagen	Transporter	1949-1979
Volkswagen	Vanagon	1980-1991
Volkswagen	e-Golf	2015
